Tsubame Industries

Archax

Pilotable Mecha

A 4.5-meter-tall, 3.5-ton pilotable mecha robot blending anime aesthetics with real-world engineering, offering dual operation modes.

Availability & Pricing

Price: $2.7 million USD

Production: Limited to 5 units

Status: Limited Production

Overview

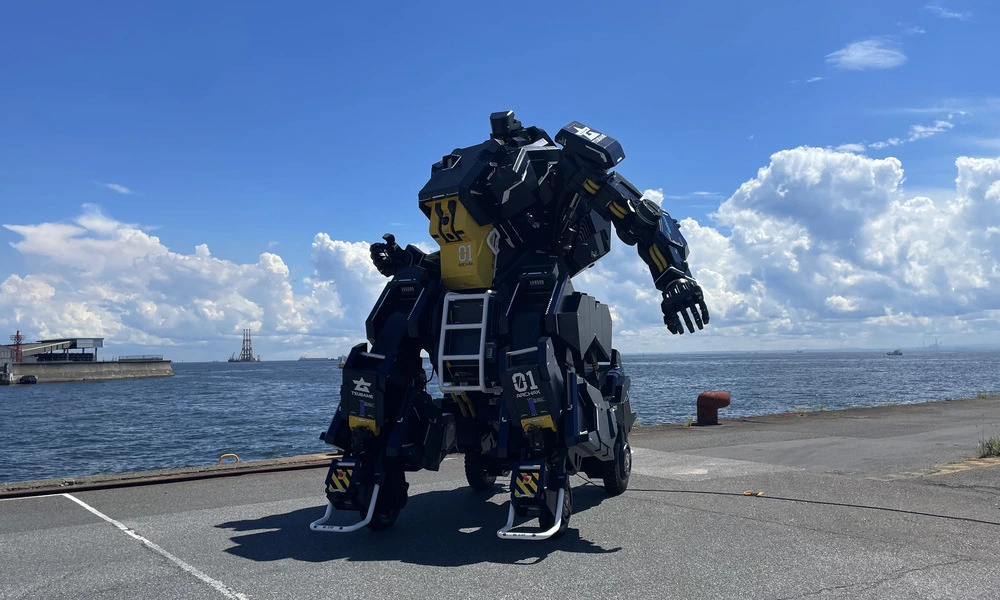

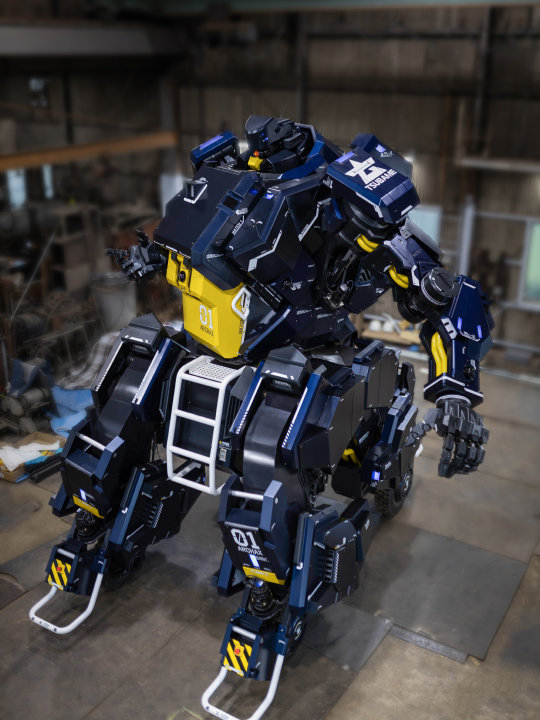

Developed by Tokyo-based startup Tsubame Industries, Archax is a groundbreaking pilotable robot that brings the world of science fiction into reality. Standing at 4.5 meters tall and weighing 3.5 tons, Archax features a humanoid upper body with two arms and hands designed to mimic human movements.

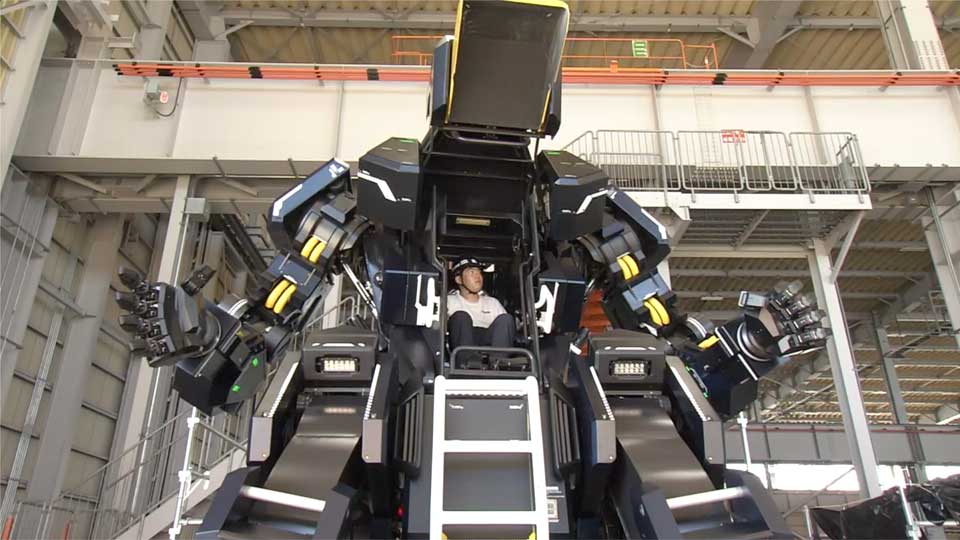

The robot offers two operation modes: an upright "Robot Mode" and a "Vehicle Mode" that allows it to travel at speeds of up to 10 km/h. Controlled from a cockpit located in the chest area, the pilot uses two joysticks, two pedals, and a touchscreen interface to maneuver the robot. The cockpit is equipped with four monitors displaying feeds from nine external cameras, providing a comprehensive view of the surroundings.

Archax's design emphasizes both mechanical functionality and aesthetic appeal, with a frame constructed from iron and aluminum alloy, covered in fiber-reinforced plastic and 3D-printed components. Safety has been a paramount concern in its development, adhering to ISO and JIS standards to ensure reliable operation.

Technical Specifications

Height

4.5 meters (14.8 feet)

Weight

3.5 tons (7,700 pounds)

Operation Modes

Robot Mode / Vehicle Mode

Top Speed

10 km/h (Vehicle Mode)

Steering

Front-wheel steering

Drivetrain

Rear-wheel drive

Power Source

Battery-powered (DC300V)

Degrees of Freedom

26 movable joints

Control Interface

2 Joysticks, 2 Pedals, Touchscreen

Display System

4 Monitors showing feeds from 9 Cameras

Frame Material

Iron (SS400) and Aluminum Alloy

Exterior Material

Fiber-Reinforced Plastic (FRP) and 3D-Printed components

Capabilities

Pilotable Cockpit: Comprehensive control interfaces for human operation with intuitive joystick and touchscreen controls.

Dual Operation Modes: Versatile movement between Robot Mode for demonstrations and Vehicle Mode for transportation.

Advanced Camera System: 360-degree visibility through 9-camera setup displayed on 4 cockpit monitors.

Articulated Limbs: Expressive gestures and human-like arm movements with 26 degrees of freedom.

Safety Compliance: Adheres to ISO and JIS international safety standards for reliable operation.

Applications

Entertainment: Exhibitions, theme parks, and promotional events showcasing cutting-edge robotics technology.

Research & Development: Testing platform for advanced robotics technologies and human-machine interfaces.

Luxury Collectibles: High-end personal ownership for robotics enthusiasts and collectors.

Media & Film: Practical effects and promotional content creation for the entertainment industry.

Educational Demonstrations: Showcasing advanced engineering and robotics principles to inspire future generations.

Videos & Media

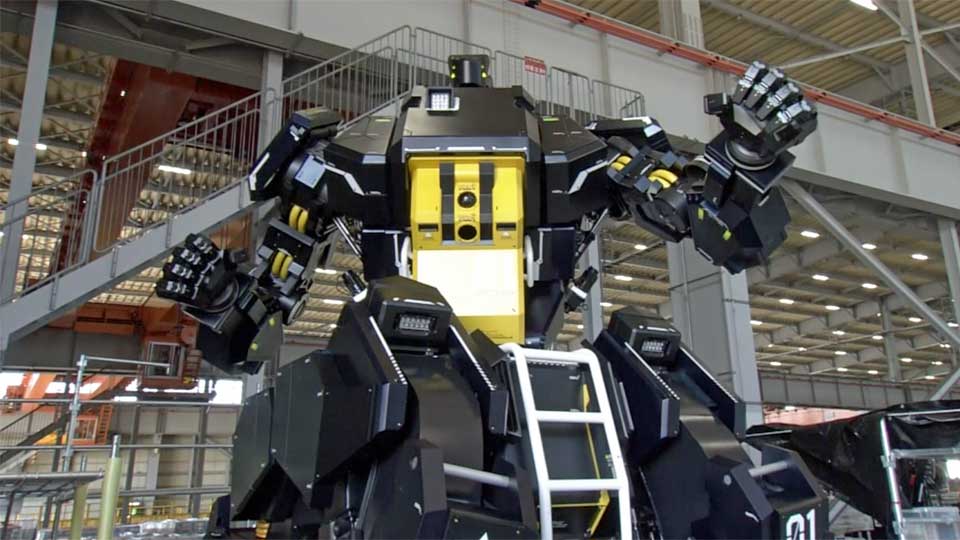

Archax - Pilotable Mecha Robot Demonstration

Archax - Advanced Operation Modes

Image Gallery
